RCA CT-100
The Merrill
Chassis Serial Number B8002390
Cabinet Serial Number 663

Picture Page 1
All pictures taken June 30, 2001 before restoration began

Click on images below for larger pictures
Click here for Picture Page 2
Click here for Picture Page 3
Click here for Picture Page 4


Complete view of the television set at the beginning of
the restoration.

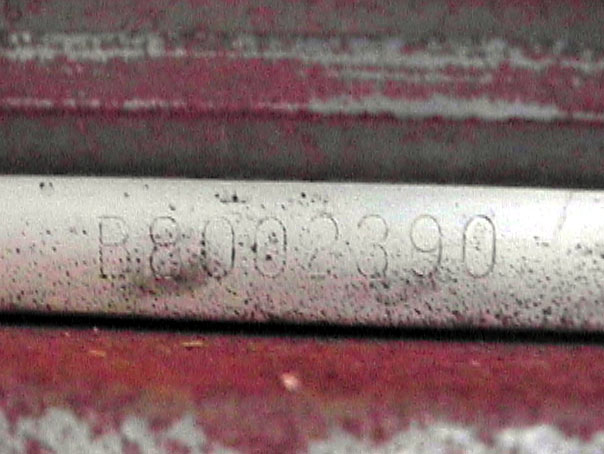

Close up of the "B" series number stamped on the chassis.

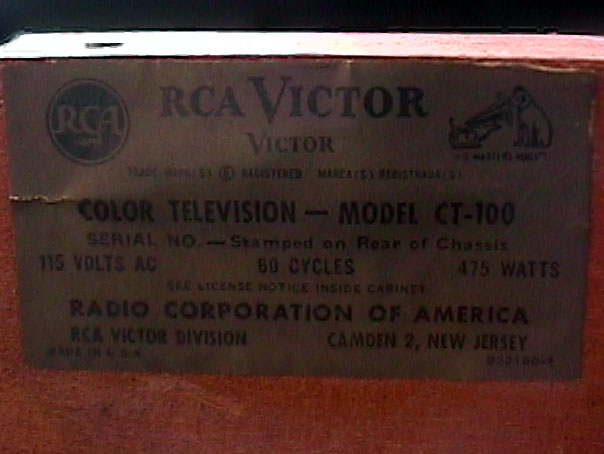

RCA Victor label located on the upper, rear of
the cabinet.

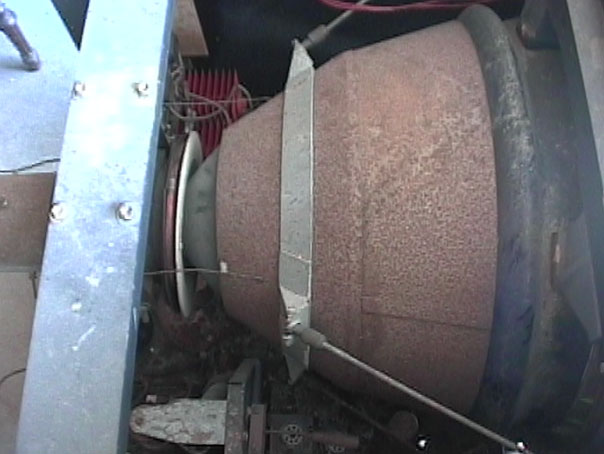

The picture tube shield.  Notice the rust from years of
improper storage at the KRIS transmitter building.

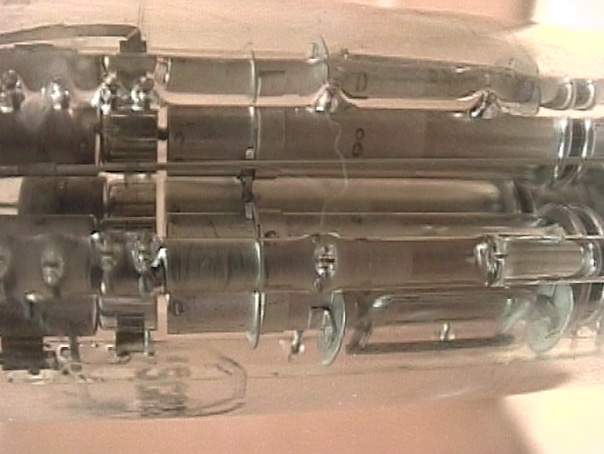

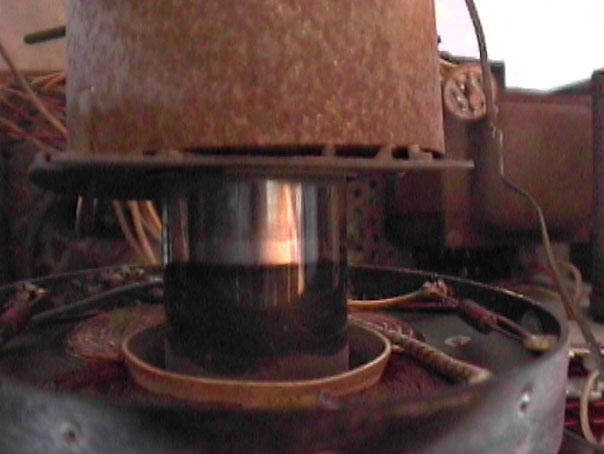

Possibly the best news for any restoration - a shiny,
silver "getter".  This indicates the CRT is still under
vacuum.  The filaments also check good.

Another view of the rear of the yoke and the neck.  Rust
is present on virtually all metal surfaces.

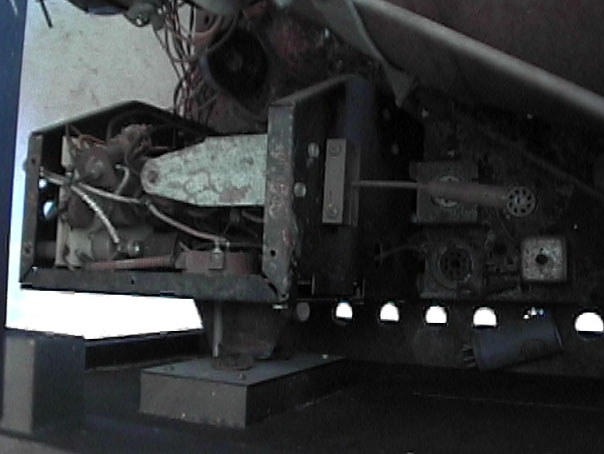

The high voltages cage showing damage caused by the
rats that nested in the set decades ago.

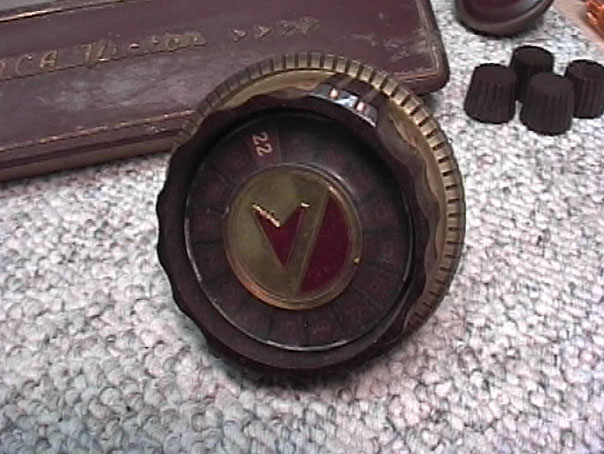

Tuning knobs and four control knobs.  The volume
control is missing.

More rust on the tuner caused by the rats.

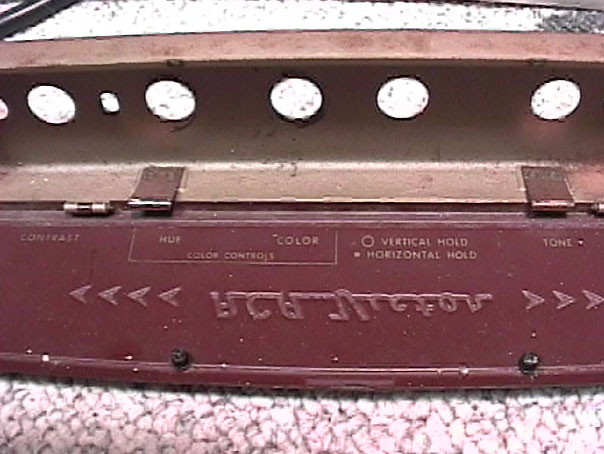

The inside of the escutcheon panel with labels for
control functions.

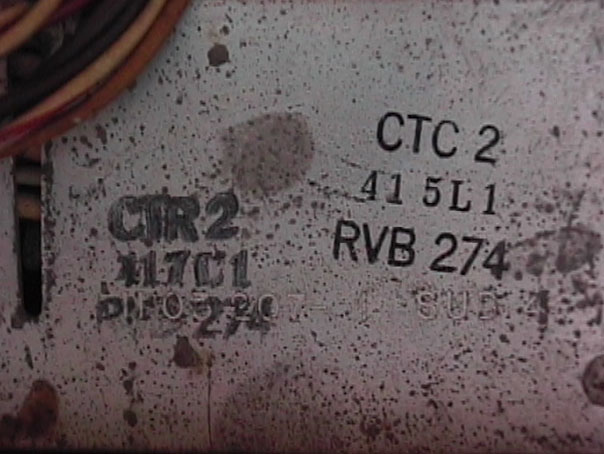

Information stamped on rear of chassis

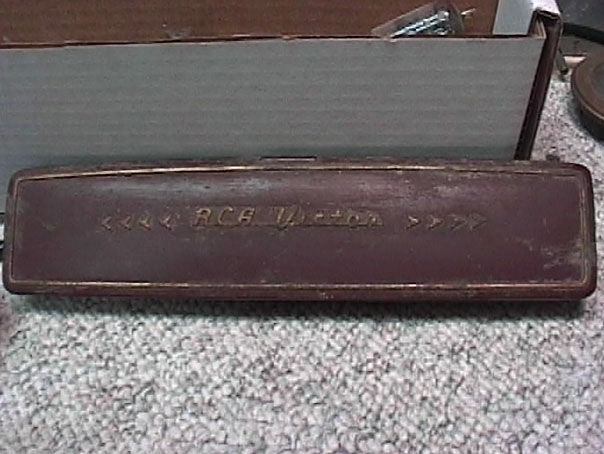

Outside view of the escutcheon panel showing dirt and
some deterioration of the gold trim.

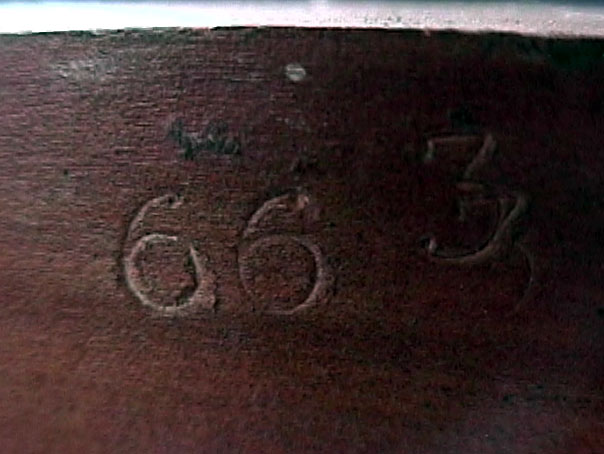

Numbers stamped into rear of cabinet.

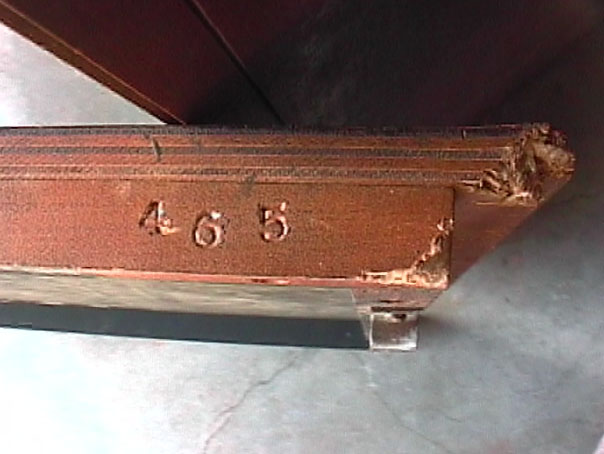

Numbers stamped into cabinet lid.  Note damage to corner
that occured when the lid blew off while transporting.
