RCA CT-100
The Merrill
Chassis Serial Number B8002390
Cabinet Serial Number 663

Picture Page 2
All pictures taken July 7, 2001 as restoration started

Click on images below for larger pictures
Click here for Picture Page 1
Click here for Picture Page 3
Click here for Picture Page 4

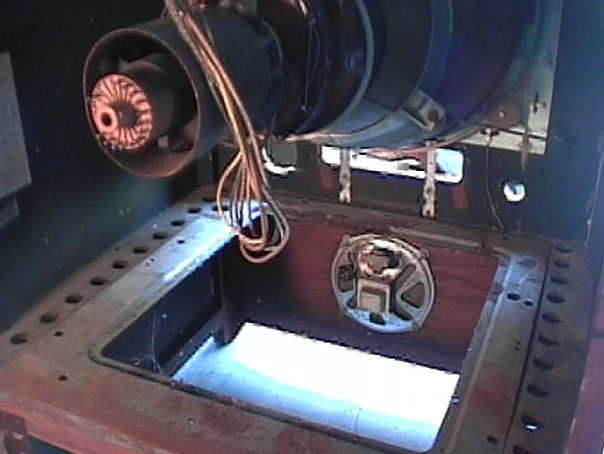

A view of the cabinet with the chassis removed.
Speaker and grill cloth are in excellent condition
Top view of chassis before cleaning

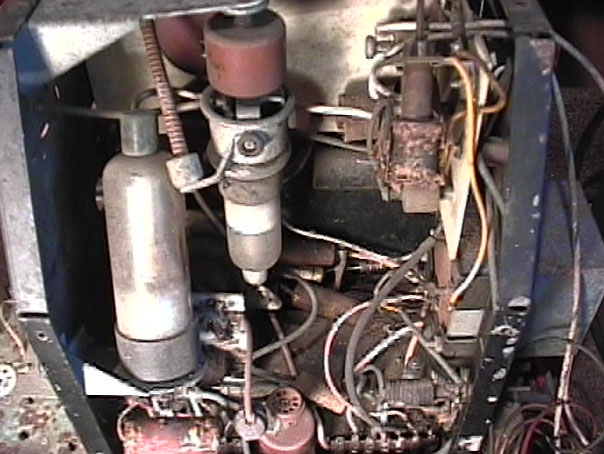

HV cage is in reasonable condition except for
T11 which has been damaged and must be replaced.
Sure hope I can find one!

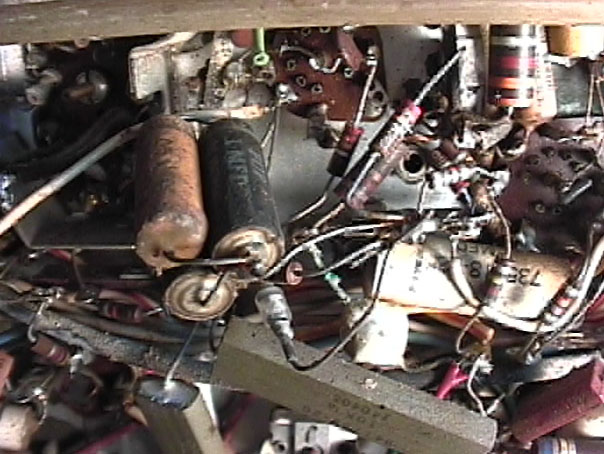

This is the video input mod I found.
It has been removed.

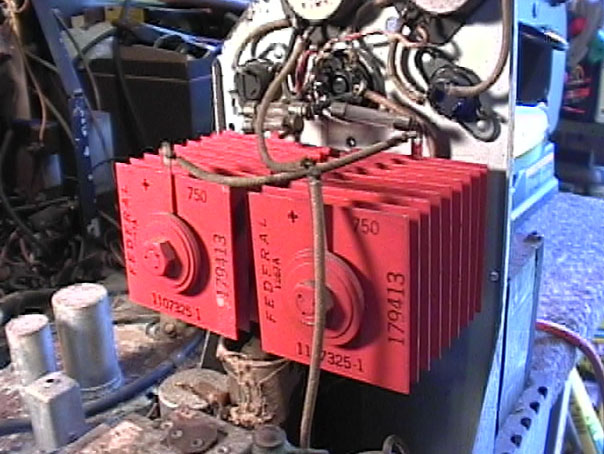

The rectifiers are in excellent physical condition.

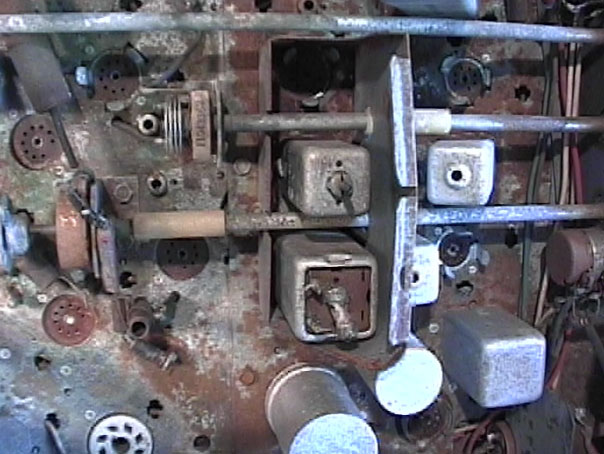

The cover is missing from this area of the chassis.

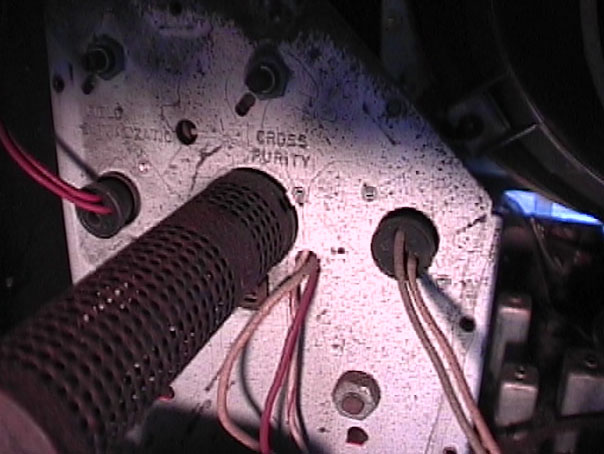

Ballast mounting plate

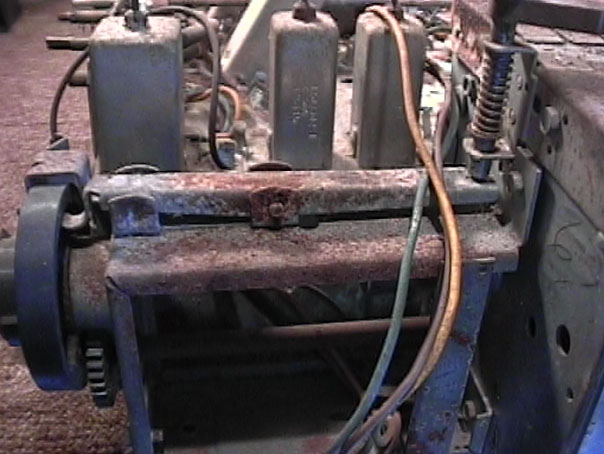

Tuning mechanism before cleaning.

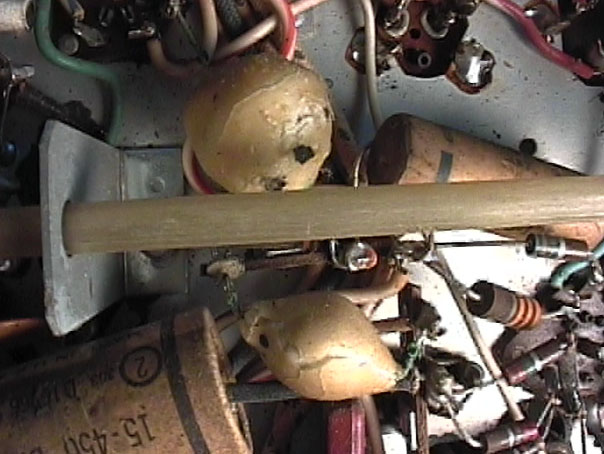

The peaking coils must all be replaced.

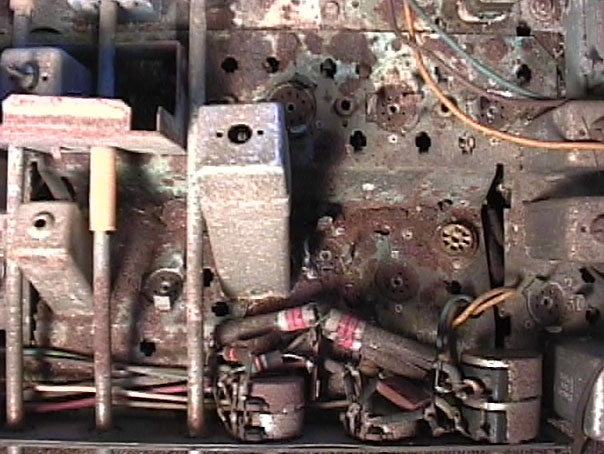

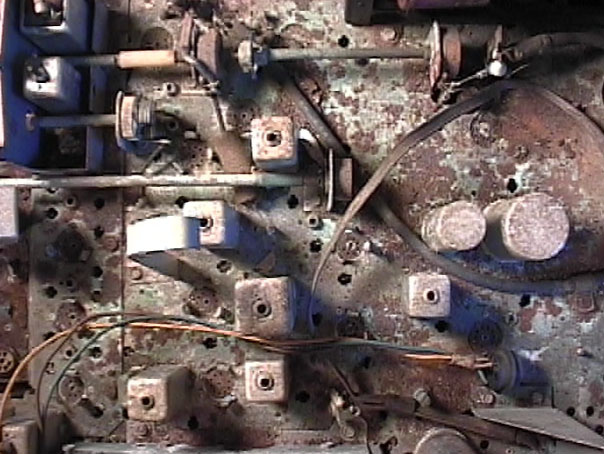

Another view of some of the damage to the
top of the chassis.

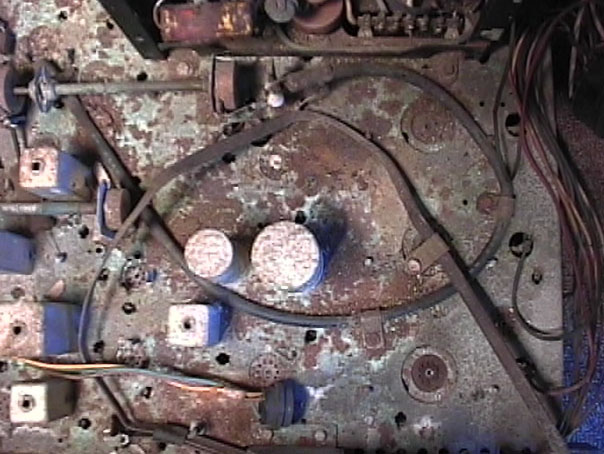

The center of the chassis before cleaning.

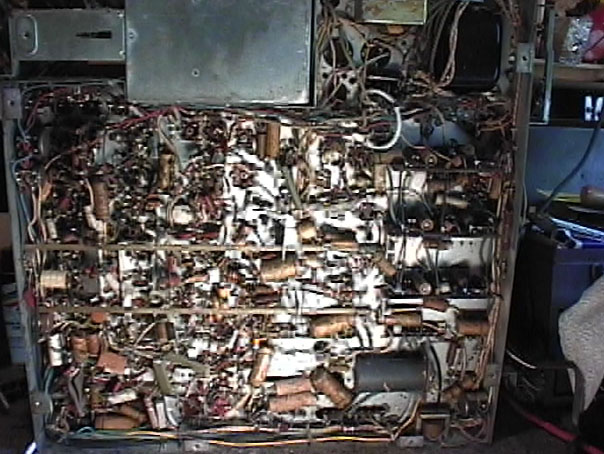

The underside of the chassis is in overall
excellent condition.
